Tooth Pitch from sizes:
10mm to 50mm within these measurement.

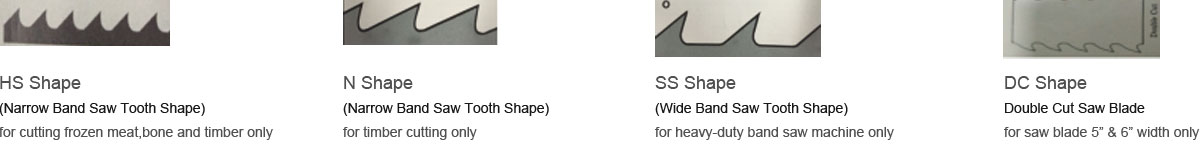

Tooth profile or shape as follow:

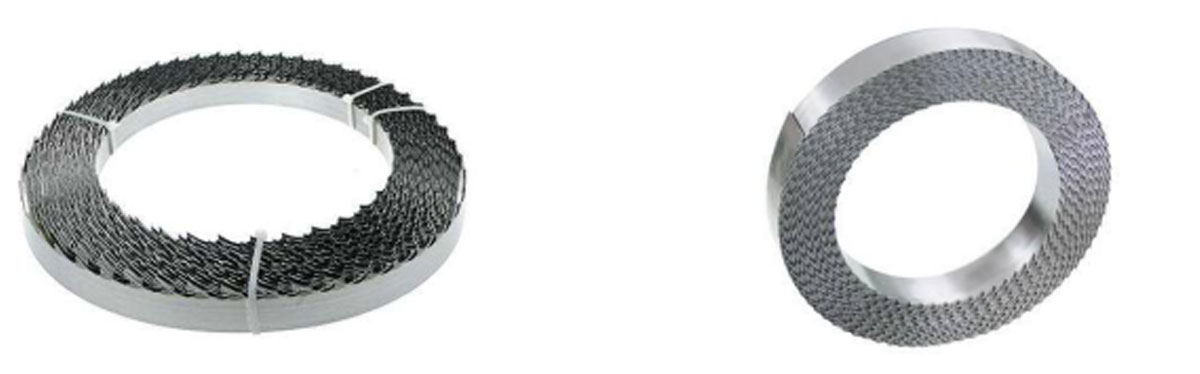

Band saw blade in coils. Can be supplied in form of 100 meters length or longer.
Bow Saws
Steel strip especially suited for automatic production of bow saws.
Characteristics are:
● Mechanical properties so suited that the risk of cracks in connection with setting is minimized
● Good flatness and straightness
Steel grade
HS (AISl 1074;W.-Nr1.1248) C= 0.75%; Si= 0.2%; Mn=0.75%
Foms of supply
Hardened and tempered steel strip in fabrication coils with an inner diameter of 400 mm(15,7 inch) and a weight of 80 kg(175 lbs)
Finishes
Surfaces:yellow polished
Edges:sheared
Flatness:max. unflatness across the strip width 0.25%
Straightness: deviation from straightness max. 1mm/m(0.04inch/3.3ft)
Mechanical properties
Tensile strength:1400±80 N/mm2 for tooth point hardened saws
1550土80N/mm2 for conventional saws
Sizes
Widths: 20-35±0.15 mm(0.79-1.38±0.006 inch)
Thickness: 0.70±0.023mm(0.028±0.0009 inch )
